Max GlenisterA custom font

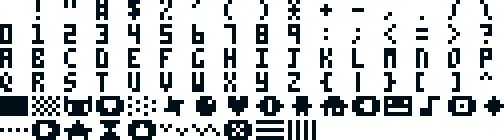

Out of the box Pico-8 has one font. It’s the utilitarian answer to most problems. 3px by 5px and fairly legible.
This font isn’t always good enough. How about making your own font?
I’ve seen lots of approaches for creating fonts in Pico-8 – mostly using sprites for each glyph of the font, but then you’re limited to 8x8px and a have to mess with pal modes if you want to adjust colors on-the-fly.
My approach uses the raw pixel data encoded in strings that are rendered using calls to pset, falling back to the built-in font for any missing glyphs.
First, here are my helper functions…
-- merge tables
function mt(t1,t2)
local new = {}
for k,v in pairs(t1) do new[k] = v end
for k,v in pairs(t2) do new[k] = v end
return new
end
-- less verbose way to do ternary operations
function ternary(cond ,t ,f )
if cond then return t else return f end
end
I had to come up with a compact way to represent the glyphs. Initially I used something like:
{ glyph = "o", pixels = {
0,1,1,1,0,
1,0,0,0,1,
1,0,0,0,1,
1,0,0,0,1,
1,0,0,0,1,
1,0,0,0,1,
0,1,1,1,0,
}}
But that contains a lot of tokens and lots of repeated/dead values to represent the empty pixels in a glyph.
Eventually I moved to something like:
{"o", "0.1.3.1.1.3.2.3.2.3.2.3.2.3.1.1.3"}
That’s the same pixel data, but encoded in to a much shorter string.
The first number indicates our starting parity – this can be 0 or 1 and tells us if the top/left pixel is empty or filled.
Each time we have a . the parity flips, so with the example of our “o” glyph it starts with 0 for 1 count, then 1 for 3 counts, 0 for 1 count, 1 for 1 count, etc.
When the remaining pixels in a glyph are 0 we can just omit them from the glyph data as they’re not drawn.
The real wins are in the more simple/empty glyphs, such as “.” for example.
Before:
{ glyph = ".", pixels = {
0,0,0,0,0,
0,0,0,0,0,
0,0,0,0,0,
0,0,0,0,0,
0,0,0,0,0,
0,0,0,0,0,
0,0,1,0,0,
}}
After:
{".", "0.32.1"}
Making this change took me from an initial token count of roughly 2800 to a much more manageable count of 560-ish.

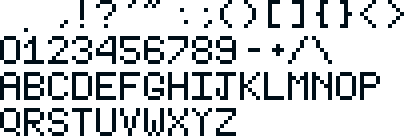

So with that technical talk out of the way, here’s the complete glyph set in code, and the function to render text. I’ll give some usage examples after.
global_y = 0
function write(str,opts)
opts = opts or {}
_opts = {
x=0,
y=global_y,
c=7
}
opts = mt(_opts,opts)
font = {
w=5,
h=7,
-- first num indicates starting value, 0 or 1
-- each number indicates number of 0 or 1 in a row
-- flips at each .
glyphs = {
{"0", "0.1.3.1.1.3.2.3.2.3.2.3.2.3.1.1.3"},
{"1", "0.2.1.3.2.2.1.1.1.4.1.4.1.4.1.2.5"},
{"2", "0.1.3.1.1.3.1.4.1.3.1.3.1.3.1.3.5"},
{"3", "0.1.3.1.1.3.1.4.1.2.2.5.2.3.1.1.3"},
{"4", "0.3.2.2.1.1.1.1.1.2.2.3.6.4.1.4.1"},
{"5", "1.6.4.1.5.3.5.2.3.1.1.3"},
{"6", "0.1.3.1.1.3.2.4.4.1.1.3.2.3.1.1.3"},
{"7", "1.5.4.1.4.1.3.1.3.1.3.1.3.1"},
{"8", "0.1.3.1.1.3.2.3.1.1.3.1.1.3.2.3.1.1.3"},
{"9", "0.1.3.1.1.3.2.3.1.1.4.4.2.3.1.1.3"},
{"a", "0.1.3.1.1.3.2.3.7.3.2.3.2.3.1"},
{"b", "1.4.1.1.3.2.3.5.1.1.3.2.3.5"},
{"c", "0.1.3.1.1.3.2.4.1.4.1.4.1.3.1.1.3.1"},
{"d", "1.4.1.1.3.2.3.2.3.2.3.2.3.5"},
{"e", "1.6.4.1.4.4.1.1.4.1.4.5"},
{"f", "1.6.4.1.4.4.1.1.4.1.4.1"},
{"g", "0.1.3.1.1.3.2.3.2.4.1.1.4.3.1.1.3"},
{"h", "1.1.3.2.3.2.3.7.3.2.3.2.3.1"},
{"i", "1.5.2.1.4.1.4.1.4.1.4.1.2.5"},
{"j", "1.5.2.1.4.1.4.1.2.1.1.1.2.1.1.1.3.2"},
{"k", "1.1.3.2.2.1.1.1.1.1.2.2.3.1.1.1.2.1.2.1.1.1.3.1"},
{"l", "1.1.4.1.4.1.4.1.4.1.4.1.4.5"},
{"m", "1.1.3.3.1.3.1.1.1.2.3.2.3.2.3.2.3.1"},
{"n", "1.1.3.3.2.2.1.1.1.2.2.3.3.2.3.2.3.1"},
{"o", "0.1.3.1.1.3.2.3.2.3.2.3.2.3.1.1.3"},
{"p", "1.4.1.1.3.2.3.5.1.1.4.1.4.1"},
{"q", "0.1.3.1.1.3.2.3.2.3.2.3.1.1.3.5.1"},
{"r", "1.4.1.1.3.2.3.5.1.1.1.1.2.1.2.1.1.1.3.1"},
{"s", "0.1.3.1.1.3.2.5.3.5.2.3.1.1.3"},
{"t", "1.5.2.1.4.1.4.1.4.1.4.1.4.1"},
{"u", "1.1.3.2.3.2.3.2.3.2.3.2.3.1.1.3"},
{"v", "1.1.3.2.3.1.1.1.1.1.2.1.1.1.2.1.1.1.3.1.4.1"},
{"w", "1.1.3.2.3.2.3.2.1.1.1.2.1.1.1.2.1.1.1.1.1.1.1.1"},
{"x", "1.1.3.2.3.1.1.1.1.1.3.1.3.1.1.1.1.1.3.2.3.1"},
{"y", "1.1.3.1.1.1.1.1.3.1.4.1.4.1.4.1.4.1"},
{"z", "1.5.4.1.3.1.3.1.3.1.3.1.4.5"},
{" ", "0.35"},
{".", "0.32.1"},
{",", "0.27.1.3.1"},
{"!", "0.2.1.4.1.4.1.4.1.4.1.9.1"},
{"?", "0.1.3.1.1.3.1.4.1.3.1.3.1.9.1"},
{"'", "0.3.1.3.1"},
{"\"", "0.1.1.1.1.1.1.1.1"},
{":", "0.12.1.14.1"},
{";", "0.12.1.14.1.3.1"},
{"(", "0.3.1.3.1.3.1.4.1.4.1.5.1.5.1"},
{")", "0.1.1.5.1.5.1.4.1.4.1.3.1.3.1"},
{"[", "0.1.3.2.1.4.1.4.1.4.1.4.1.4.3"},
{"]", "0.1.3.4.1.4.1.4.1.4.1.4.1.2.3"},
{"{", "0.2.2.3.1.4.1.3.2.4.1.4.1.4.2"},
{"}", "0.1.2.4.1.4.1.4.2.3.1.4.1.3.2"},
{"<", "0.3.1.3.1.3.1.3.1.5.1.5.1.5.1"},
{">", "0.1.1.5.1.5.1.5.1.3.1.3.1.3.1"},
{"-", "0.16.3"},
{"+", "0.12.1.3.3.3.1"},
{"/", "0.4.1.3.1.4.1.3.1.3.1.4.1.3.1"},
{"\\", "1.1.5.1.4.1.5.1.5.1.4.1.5.1"},
}
}
_x = opts.x
_y = opts.y
letters = {}
for i=1,#str do
letter = sub(str,i,i)
add(letters,letter)
end
for k,v in pairs(letters) do
letter = nil
for _glyph in all(font.glyphs) do
if _glyph[1] == v then
letter = _glyph[2]
end
end
local _sx = _x
local _sy = _y
if letter != nil then
local _px = _sx
local _py = _sy
pixels = {}
local _p = sub(letter,1,1)
local prev = nil
for i=2,#letter do
cur = sub(letter,i,i)
if type(prev) == "number" and cur != "." then
cur = sub(letter, i-1, i)
end
if cur == "." then
_p = ternary(_p == "0", "1", "0")
else
for j=1,tonum(cur) do
add(pixels, _p)
end
end
prev = tonum(cur)
end
for i,p in pairs(pixels) do
i = i - 1
if i % font.w == 0 then
_py += 1
_sx = _x - (font.w * (i / font.w))
end
_px = _sx + i
if p == "0" then
pset(_px, _py, opts.c)
end
end
else
font.w = 8
print(v, _sx, _y + ((font.h - 2)/2), opts.c)
end
_x += font.w + 1
end
global_y += font.h + 2
end
If you’re still with me, congratulations! Here is how you use the function:
function _draw()
cls()
global_y = 0 -- reset on each draw call
write("hello world")
-- passing a color is possible!
write("this is max 🐱", {c=12})
write("my font brings all")
write("the devs to the yard")
write("0123456789")
write("abcdefghijklm")
write("nopqrstuvwxyz")
write(".,?!:;()[]{}-+/\\<>")
write("yes, this is a lot")
write("nicer to read! ♥")
write("")
write("█▒🐱⬇️░✽●♥☉웃⌂⬅️😐")
write("♪🅾️◆…➡️★⧗⬆️ˇ∧❎▤▥")
write("@#$%^&*")
end

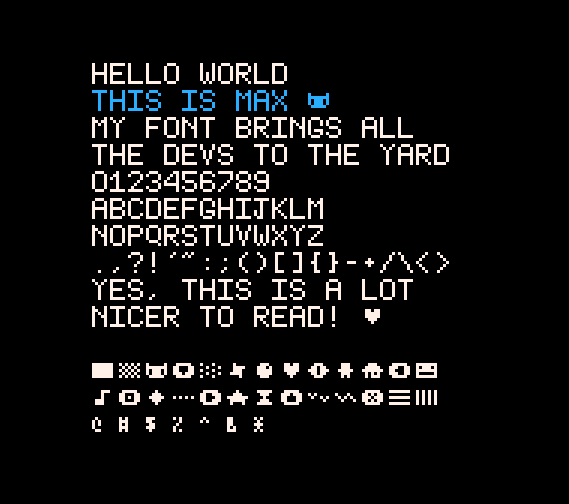

And this is how it looks:
This post is also available in plain text
